Camera Link HS Cable 8m INFINIBAND 4X cable For industrial camera full mode 85Hz
Description:

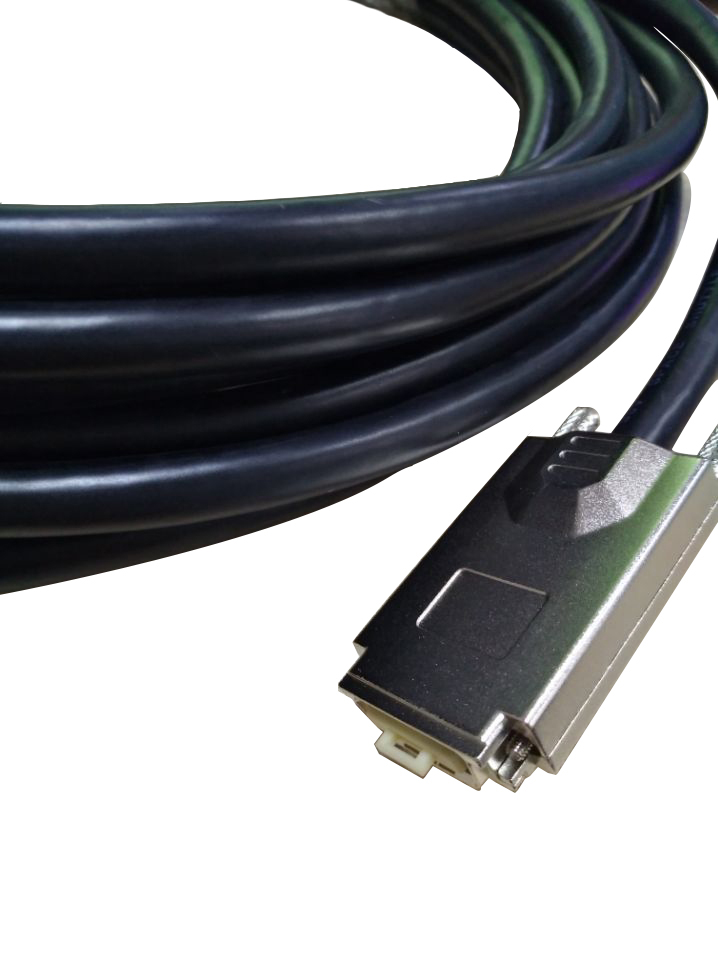

Camera link HS cable constructed of high quality shielded high speed cable , assembly with shielded INFINIBAN 4X die cast metal shell connector with thumbscrew locking. They offer outstanding quality, durability, and high performance for industrial CCD camera with INFINIBAND port.
Specification:
| Brand | Himatch | Model No. | See Code | Conductor | TC |
| Cores | (26awg *1p+d)*8c | Guage: | 26AWG | Insulation | PE |
| Jacket | Lead Free PVC | Cable OD | 8.6 | Color | Black |
| Cable | Round | For | CCD | Certification | UL |
| Voltage | 80V | Bending | 2 Million | OEM | Yes |
Features
High flexibility and durability cable;
Installation : Moving site must be high durable cable, bending radius R minimum 8D;
Shielded pairs provide superior signal integrity
RoHS and REACH compliant
Application
frame grabber
Industrial CCD camera
Industrial vision inspection system
Towed Cable wiring
In order to keep the good bending performance of the robot cable, improve the cable’s life time, and let the data transmission more stable, and prevent the accidental occurrence of the broken wire, it is very important obey the towing points
Bending radius.
The bending radius of the towed cable should be as big as possible. Recommended that the cable should be set ≥ 8D (D is the outer diameter of the cable)
Tow chain installation.
In the placement of towed cables, cables need to be tiled, cables can not be crossed or overlapped;
Select the tow chain with enough space to ensure that the cable occupies less than 30% space;
Install as many partitions as possible to avoid interference between cables.
